This product is designed to allow you to install an FE style tank onto the Windsor small block Ford engine.
The kit comes with our FE stainless steel tank, and a billet aluminium adaptor kit that allows for a direct bolt up of the FE tank to the Windsor manifold.

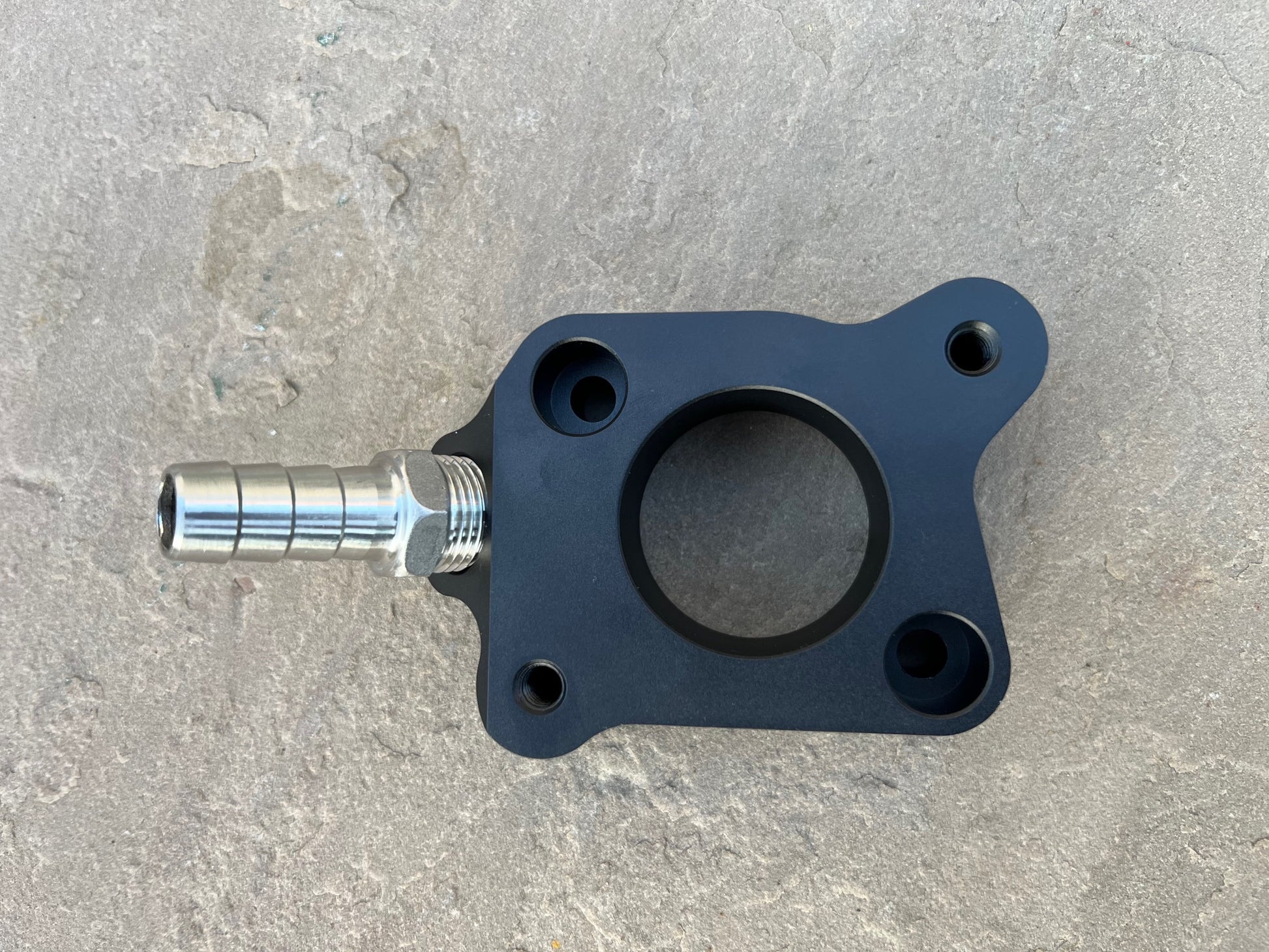

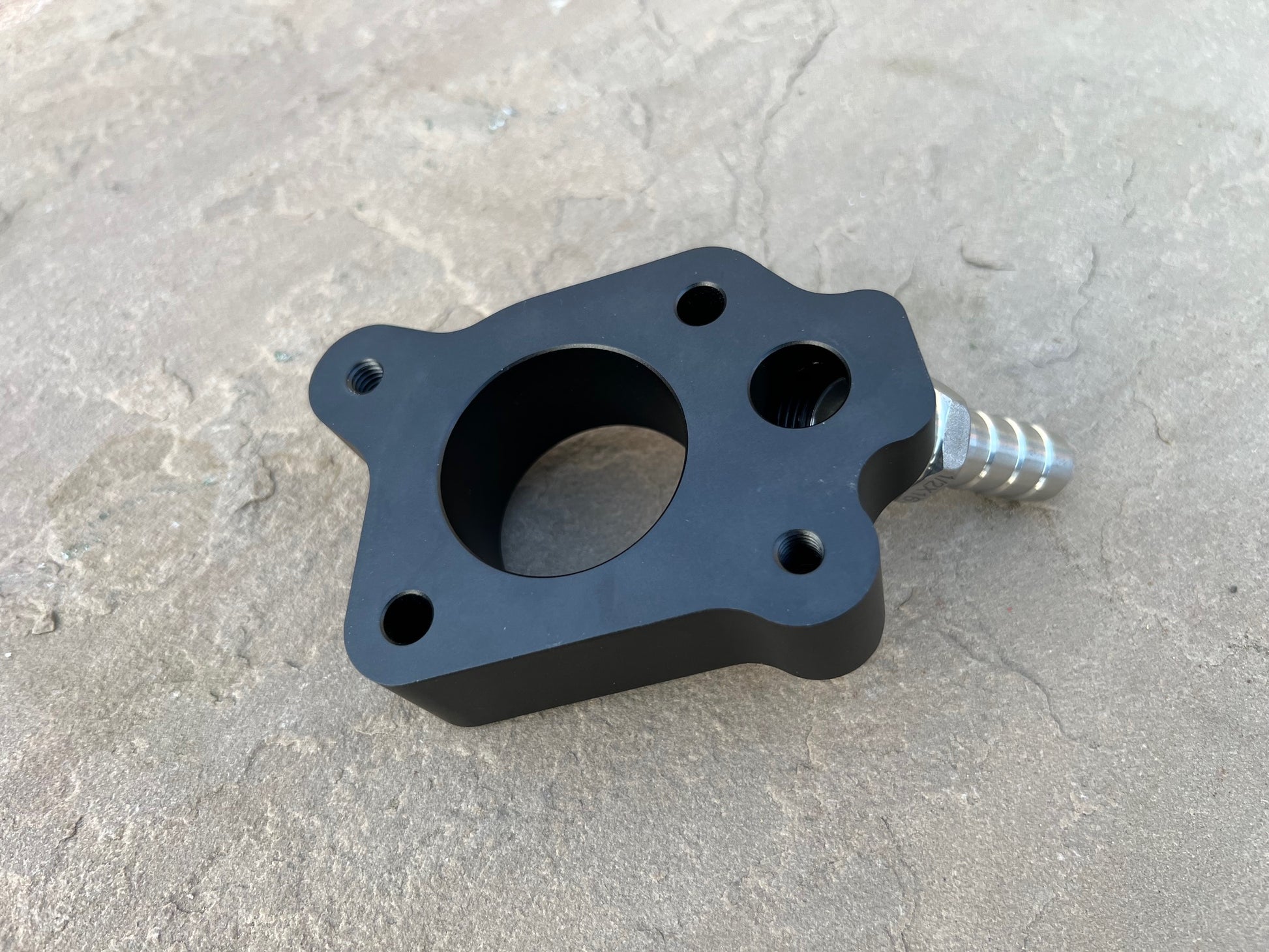

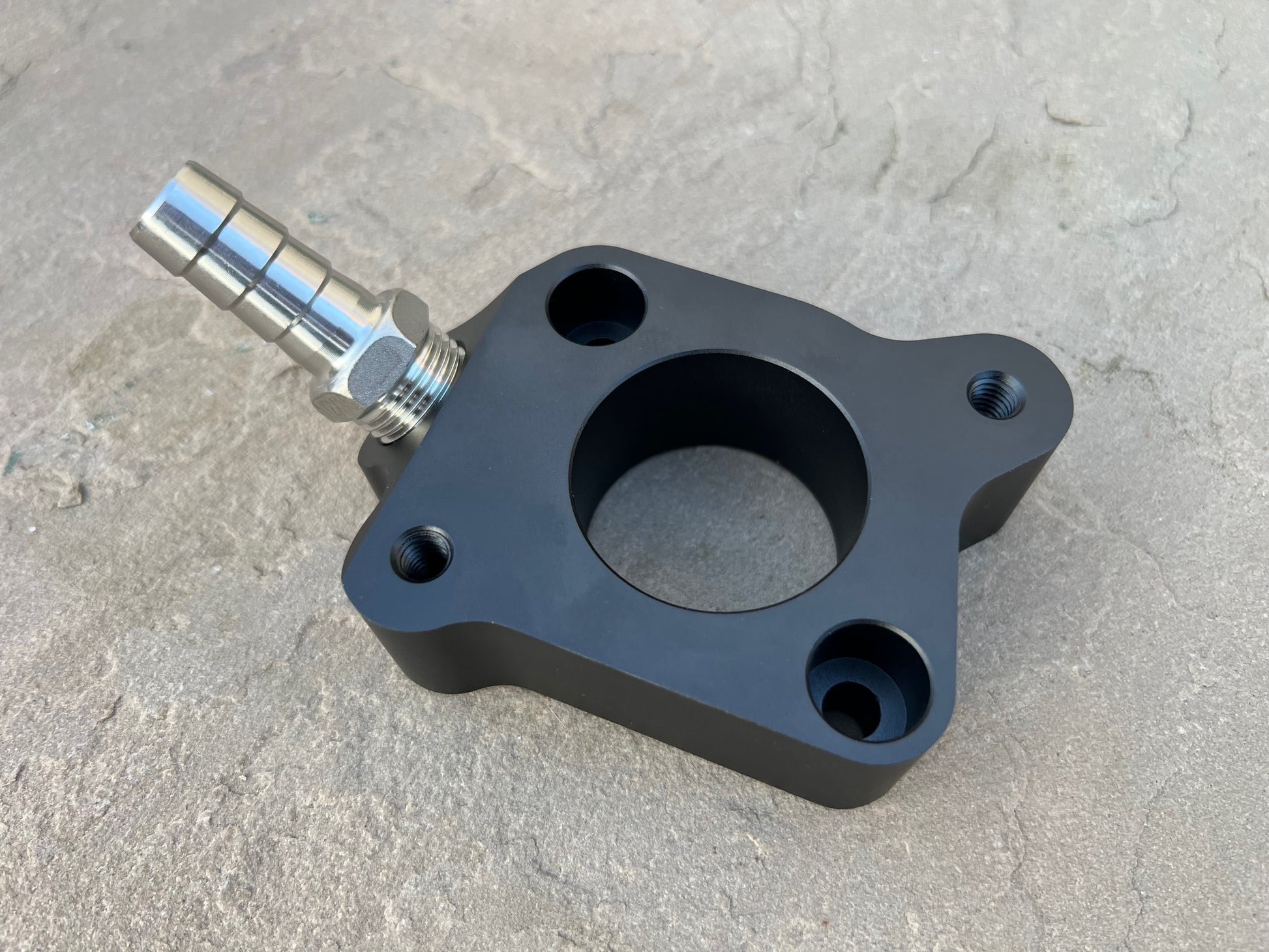

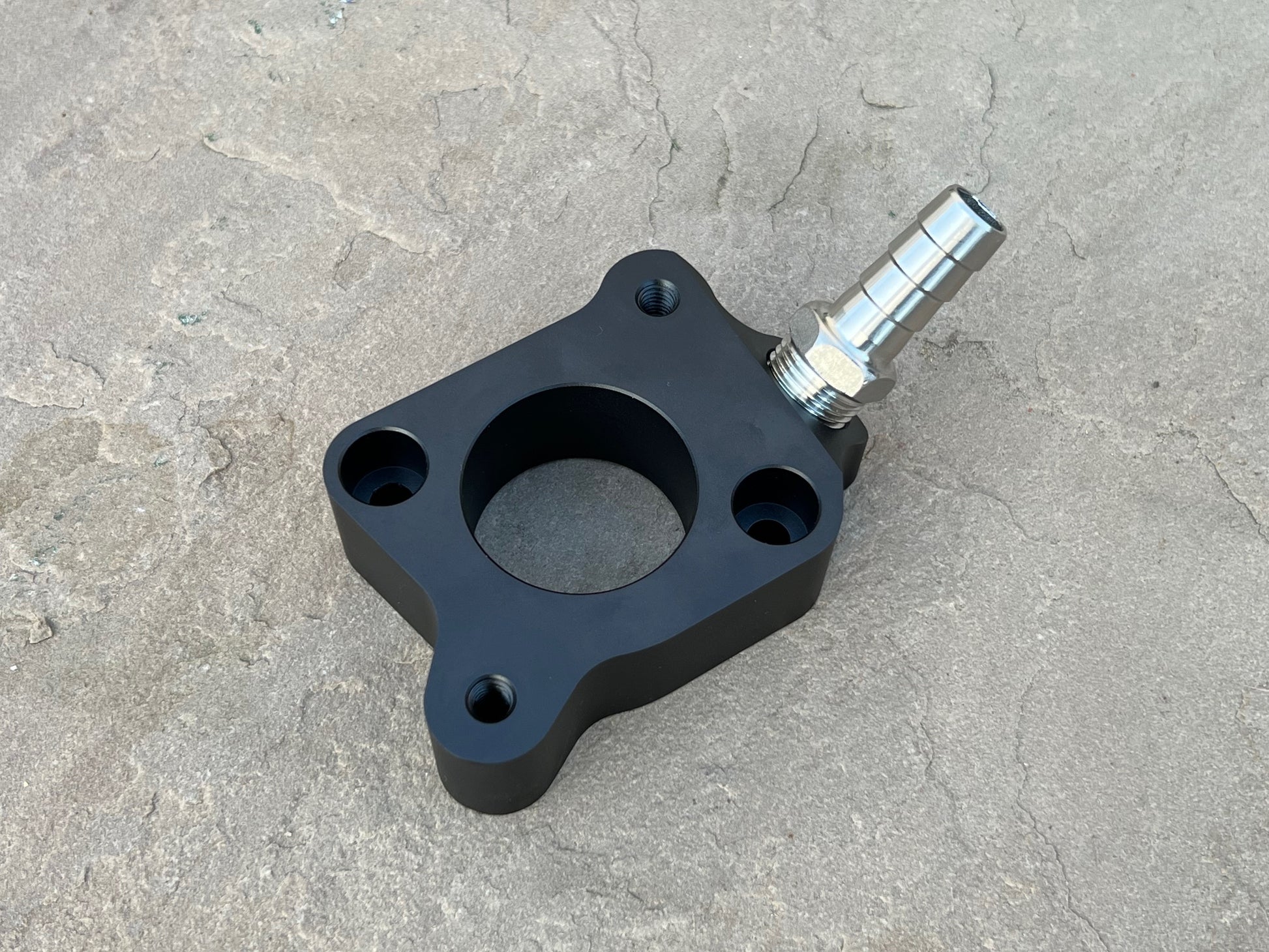

The adaptor creates clearance for the tank to most distributors of 110mm diameter cap and under, and redirects the thermostat bypass hose to create clearance. Note that you may need to modify/swap the rubber bypass hose depending on your installation. The adaptor is CNC machined from billet and satin black powdercoated for a great long lasting look.

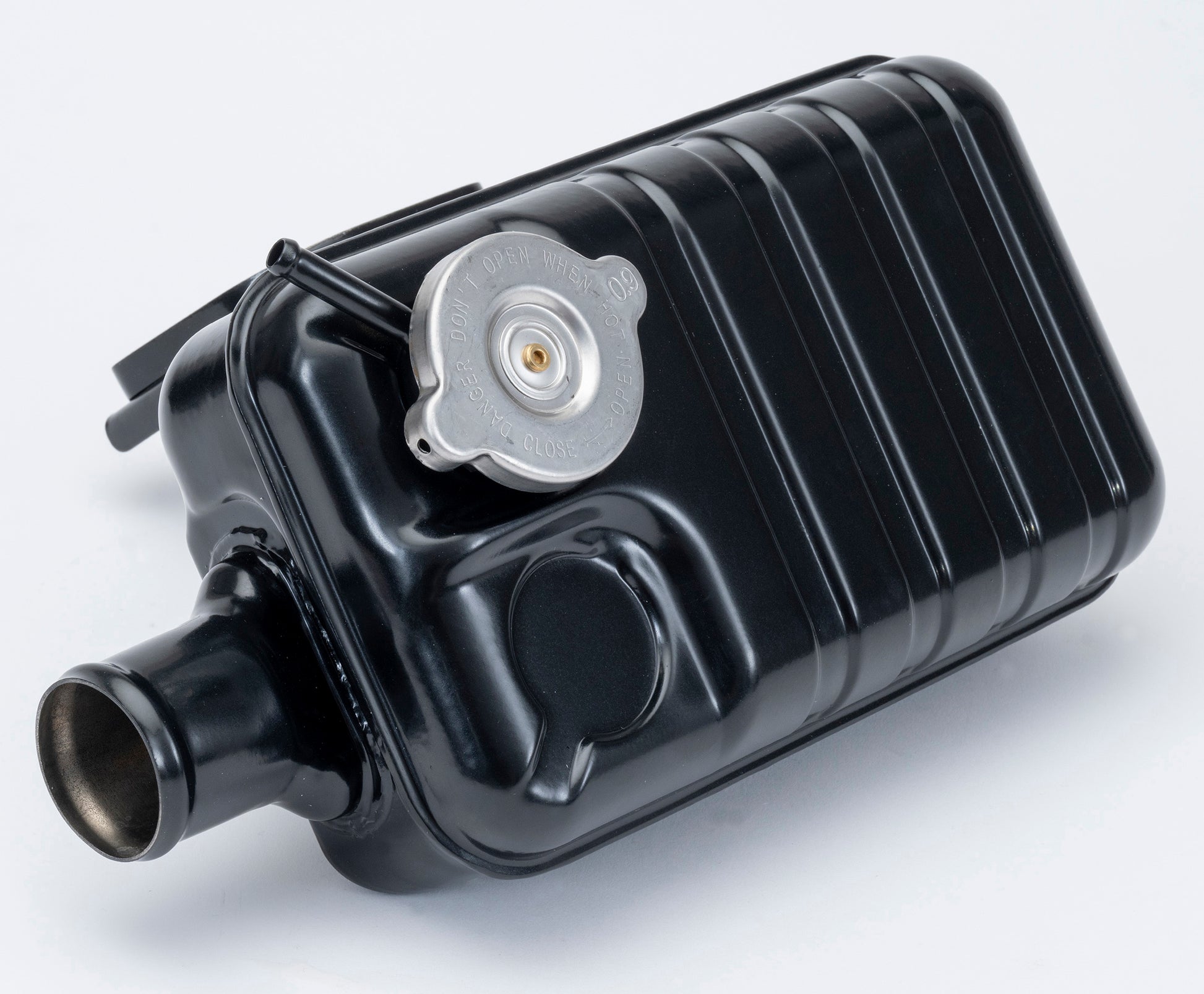

Re-engineered to visually replicate the original Ford FE brass expansion tanks fitted to Galaxies and Thunderbirds whilst using modern manufacturing methods to far exceed the quality and longevity of the original tanks.

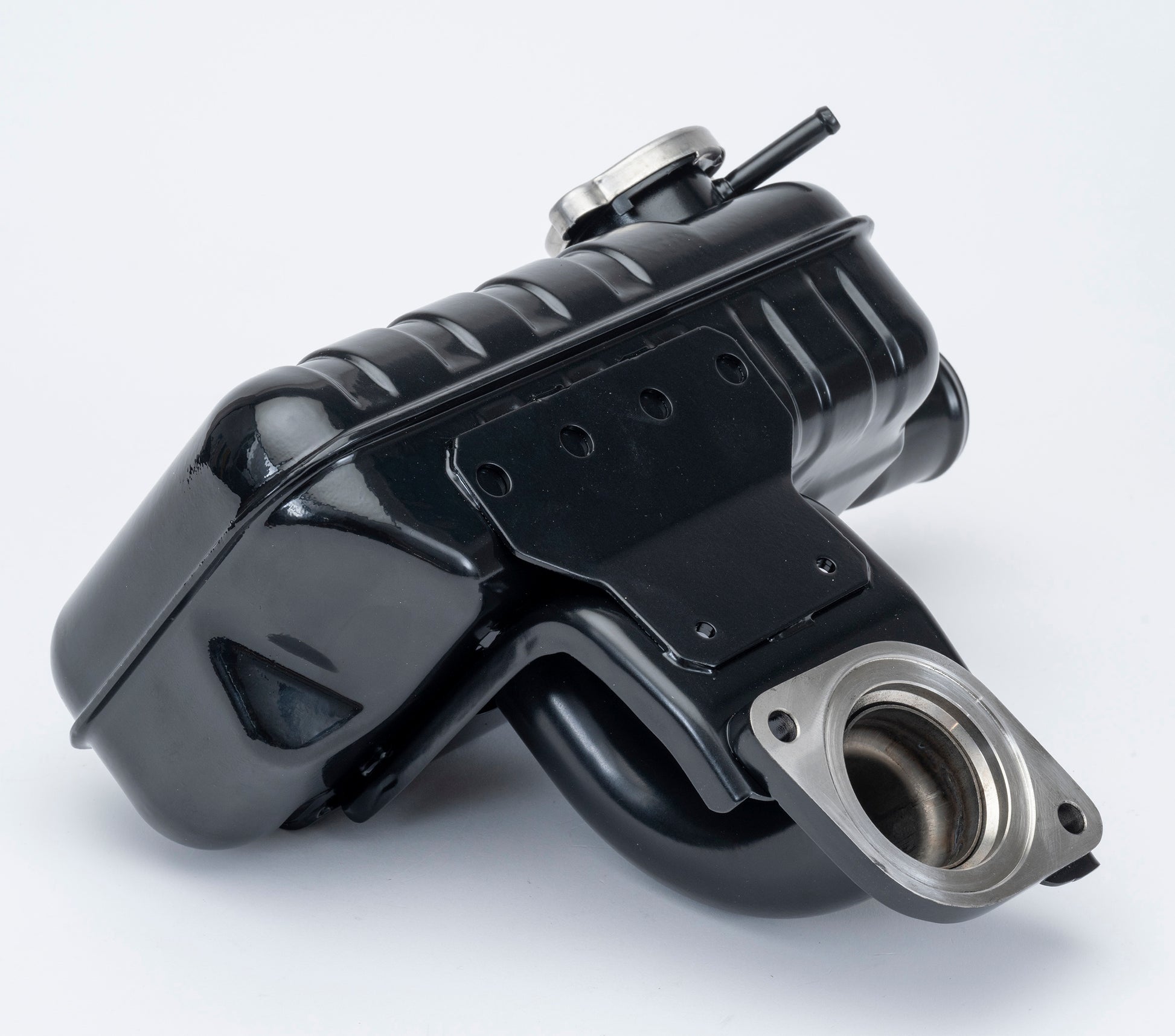

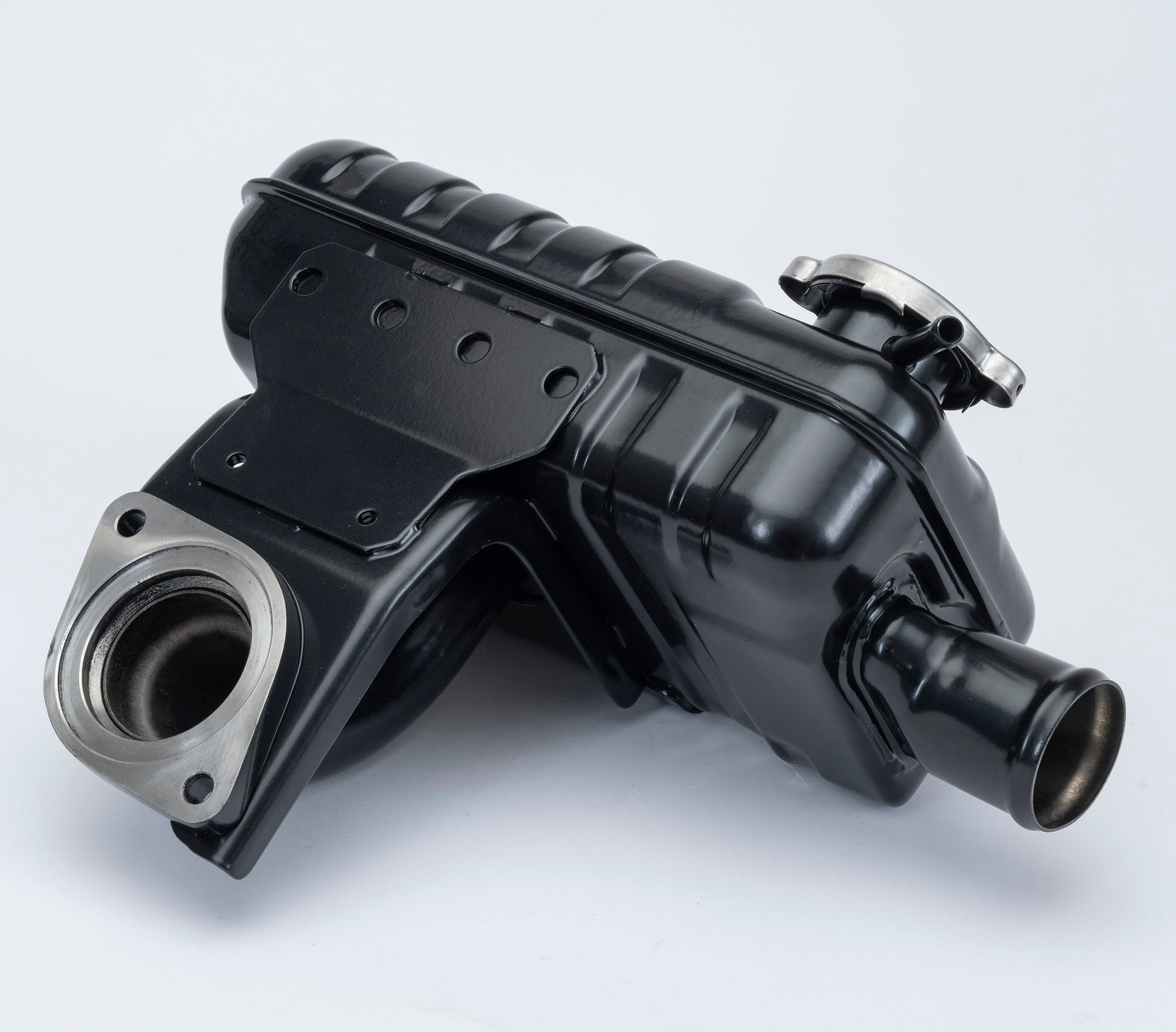

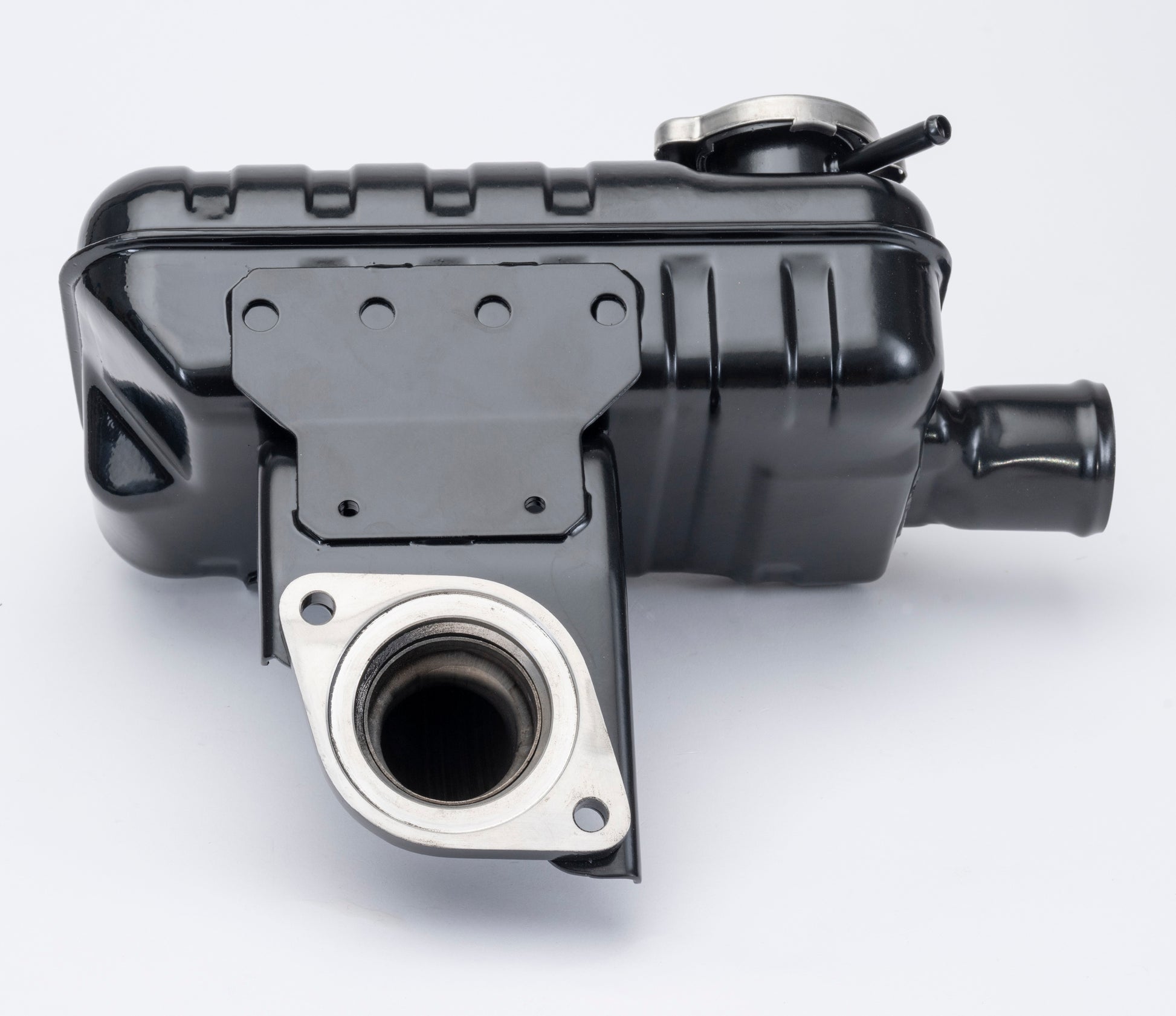

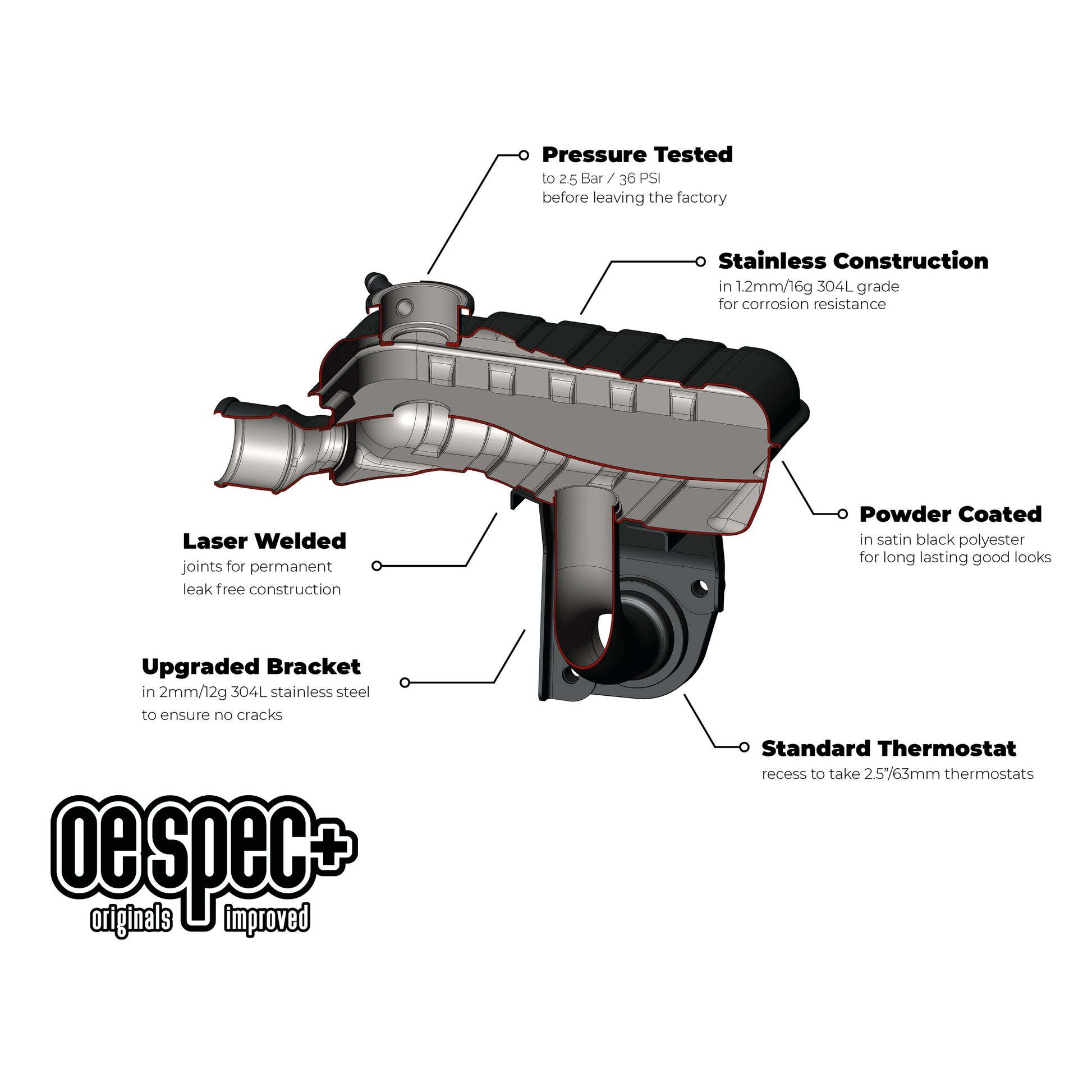

The main tank body, inner level plate, inlet and outlet are made from 1.2mm (16 gauge) 304L stainless steel. The inlet manifold flange is machined from 10mm (3/8") stainless steel with the larger 63mm (2.5") thermostat recess for improved flow.
The bracket thickness has been upgraded to 2mm (12 gauge) stainless steel from the original 1.2mm mild steel, to prevent any movement leading to hairline cracks developing.
The whole assembly is then laser welded on a jig to ensure accuracy and a permanently leak free tank. Each tank is pressure tested before leaving the factory.

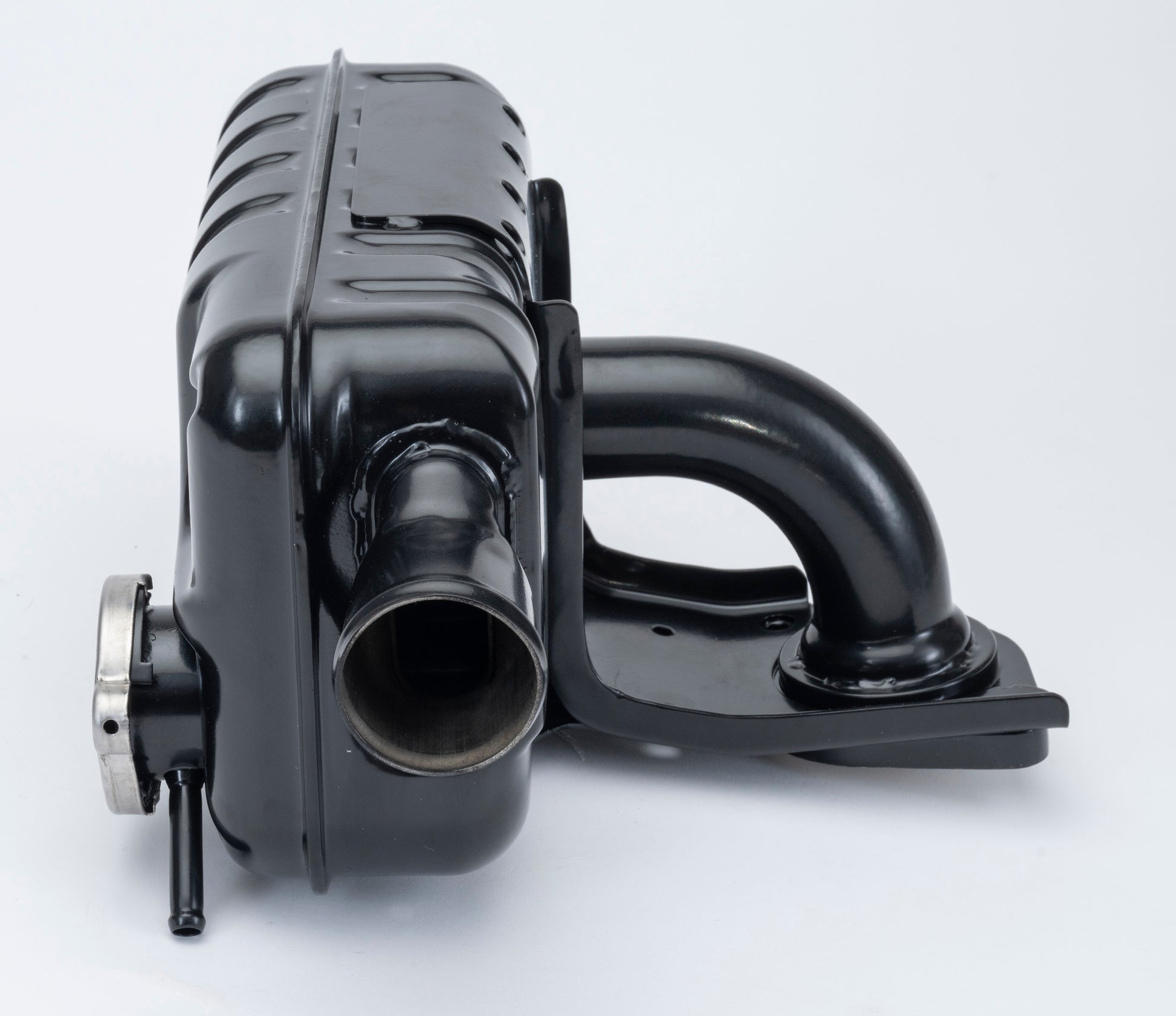

Tanks are finished in a satin black polyester powdercoat to match the original factory paint whilst providing much better resistance to degrading/flaking.

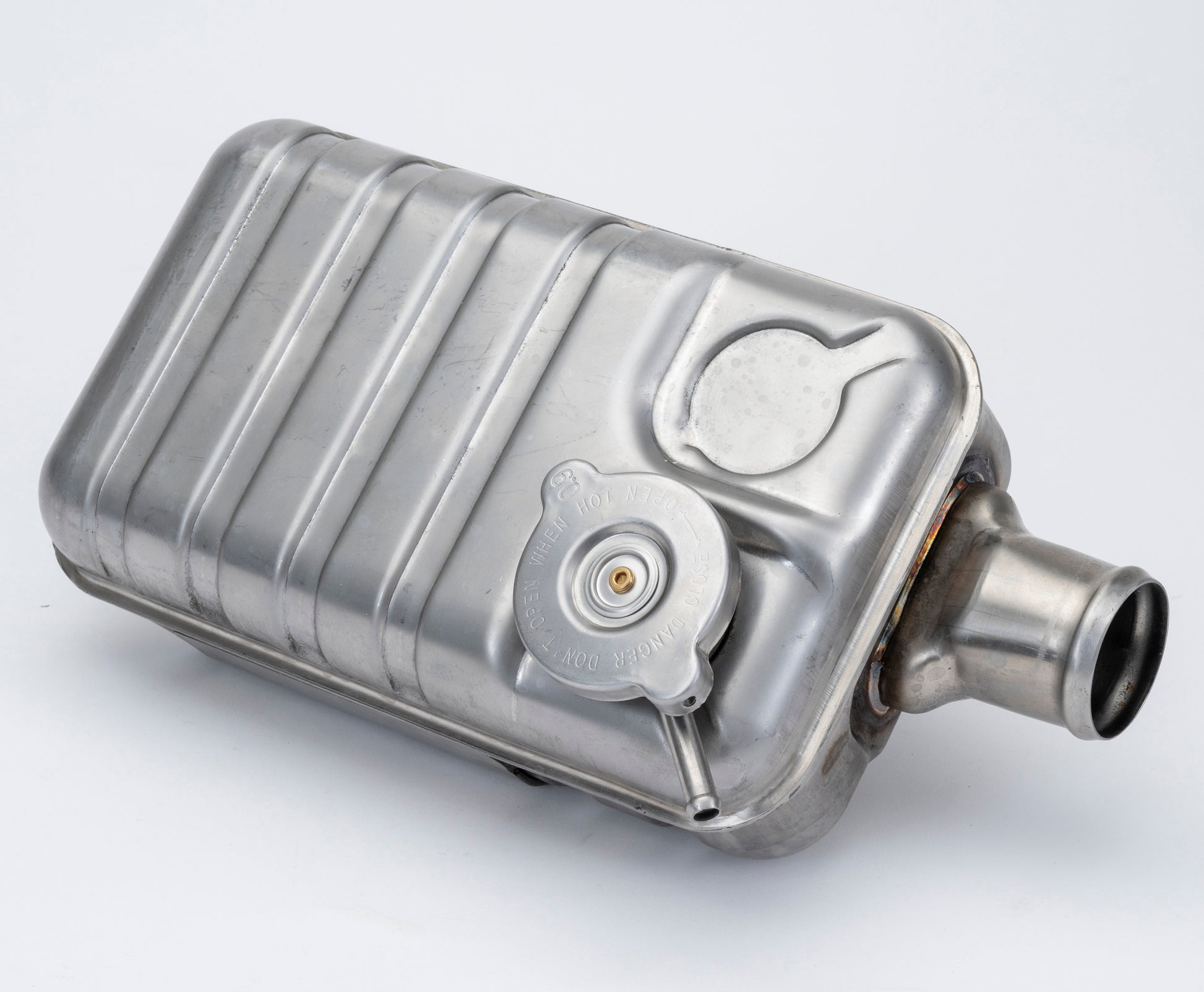

Optionally we can supply the tank in raw stainless for customers who wish to either polish the tank or finish to their own colour. Raw tanks also include a 3/8" outlet spigot pipe that can be welded by the customer into their chosen location. This was commonly fitted to original cars to help air burp into the expansion tank from the top of the radiator.

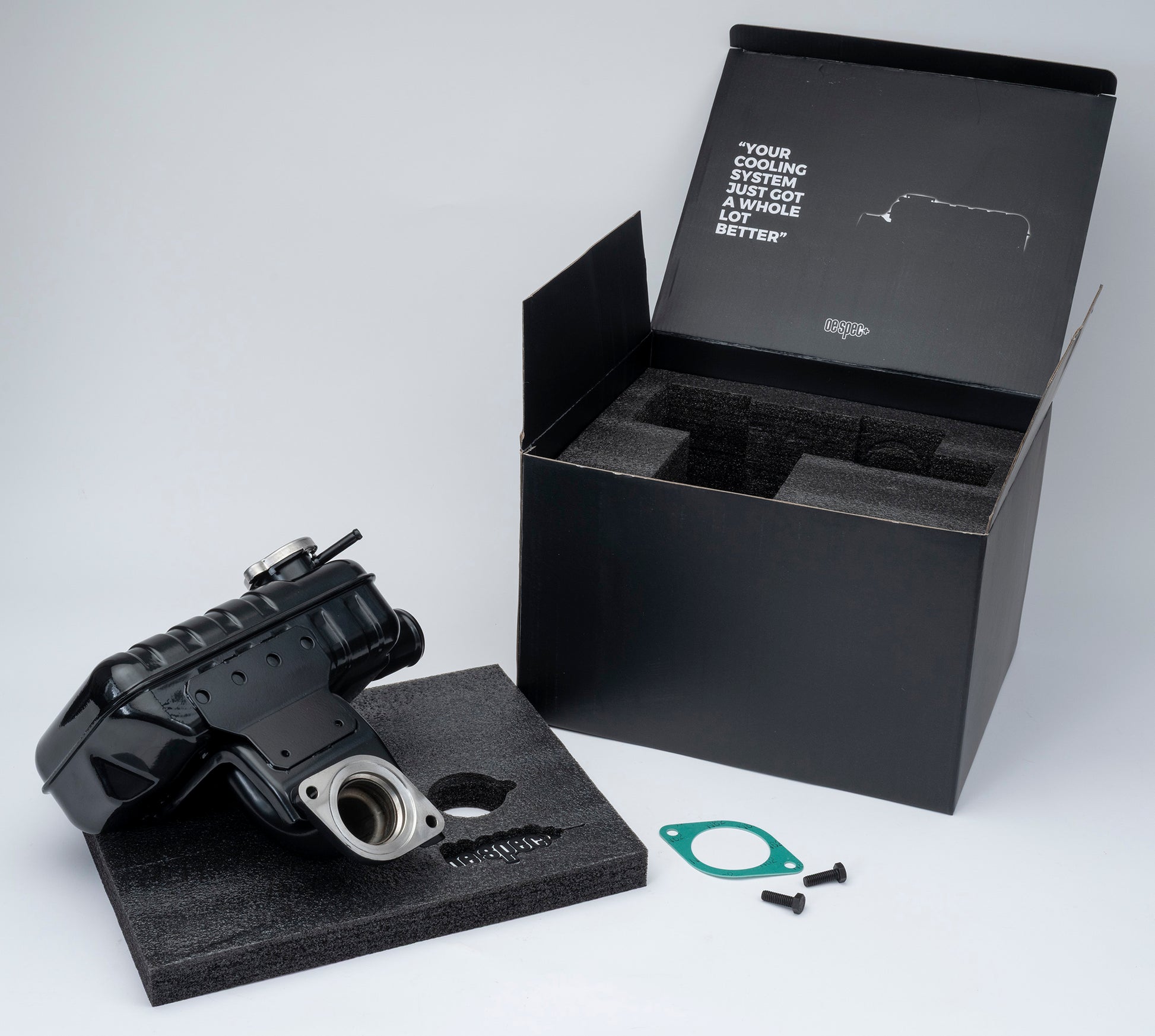

Securely packaged for shipping and supplied in an attractive presentation box with 13psi radiator cap, manifold gasket and bolts plus a branded keyring.
Upgrade your leaky old FE style Expansion Header Tank today to an OE Spec+ version and enjoy a fit and forget solution.
Kit Contents
- Ford FE Expansion Tank
- Expansion Tank to adaptor gasket and bolts
- Windsor adaptor block with bypass hose spigot and adaptor to manifold gasket
